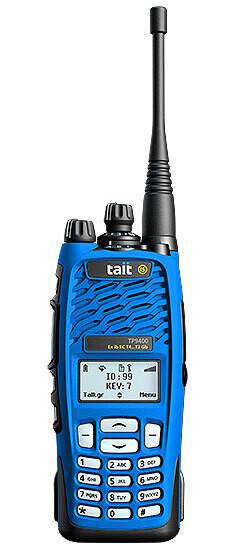

TAIT TP9400 Series Portable Radio

Home/Store/Portable Radios/TAIT
SKU 00046
Product Details

CALL FOR PRICING

The TP9400 P25 Phase 2 portable series gives you more efficient networks and more possibilities. With multiple operating modes, safety-enhancing features, and a rugged, robust design, the TP9400 is engineered to meet the demanding standards of the public safety industry.

Rugged, tough build

The robust, Tait Tough design of the TP9400 series offers IP65 and IP68 sealing and shock absorbing impact-protected corners, exceeds relevant MIL-STD-810G standards, and features a water-shedding grille which aids voice clarity in wet environments.

Cost-effective flexibility

With multiple operating modes including analog, analog simulcast IP, 12.5kHz P25 Phase 1 FDMA conventional/trunked, P25 Phase 2 TDMA trunked, and LSM (CQPSK) decode capability in a single device, you can transition to a more spectrally efficient solution in a time frame that suits you. The TP9400 series also operates in VHF and 700/800MHz frequency bands.

Improved user safety

Safety is the top priority for Public Safety organizations around the world. Ensure the safety of your first responders with TP9400 capabilities such as clear voice, location services, Man Down & Lone Worker functionality, AES encryption capability, and radio inhibit and uninhibit to allow management of lost or stolen radios.

Increased user efficiency

The TP9400 series offers features that help increase operational effectiveness, including voice and data, simulcast support and pre-set status messages.

True interoperability for more choices

Interoperability with adherence to the P25 standards gives your organization greater vendor choice and increased competition.

Simplified, secure management

The TP9400 series supports security-focused fleet management with Over-the-air Rekeying (OTAR) and Tait Key Fill Device (KFD) capabilities.

Technical specifications

Frequency Bands

VHF 136-174MHz, UHF 400-470MHz, UHF 450-520MHz, 700/800MHz from 757-870MHz

Tait Tough

Military Standards for high humidity, sand & dust, vibration, shock, rain, solar radiation, and more. IP68 & IP65 water and dust resistant. Operating temperature of -22ºFto+140ºF(-30ºCto+60ºC)

Output Power

VHF: 5W, 3W, 2W, 1W
UHF: 4W, 2.5W, 2W, 1W
700/800MHz: 3W,2.5W,2W,1W

Receiver Sensitivity

Sensitivity (analog), 12dBSINAD: 0.22μV(-120dBm) in VHF and UHF, 0.22μV(-121dBm) in 700/800MHz
Sensitivity (P25), 5%BER: 0.22μV(-120dBm) in VHF and UHF, 0.22μV(-121dBm) in 700/800MHz

Channels/Zones

1,000 channels/50 zones
(2,000 channels/100 zones optional enhancement with software license)

Dimensions

Dimensions (DxWxH)
With Li-Ion standard battery: 1.61x 2.56 x 5.35in (41x 65x 136mm) - excluding knobs
With Li-Ion standard battery: 1.77x 2.56 x 5.35in (45x 65x 136mm) - excluding knobs

Weight
With Li-Ion standard battery: 11.46oz (325g) - no antenna
With Li-Ion standard battery: 13.12oz (372g) - no antenna

Comes in your choice of black, orange, red, yellow, green or blue.
