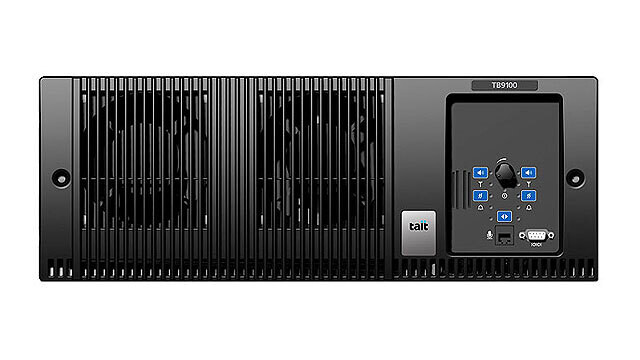

TAIT TB9100 P25 Base Station / Repeater
SKU 00044
Product Details
CALL FOR PRICING
The TB9100 base station/repeater is renowned for its built-in intelligence, flexible dual-mode operation, and reliability. This makes it an easy choice for seamless migration from analog to P25 digital. In a compact 4U package, the flexible and modular design of the TB9100, combined with intuitive programming software makes it an ideal P25 solution for conventional, trunked and simulcast mission-critical networks.
Intelligent and reliable
The TB9100 offers built-in test equipment for self-monitoring, with local and remote logging of alarms, ensuring any issue with your system is recognized and addressed immediately. It also ensures continuity of service with smart AC/DC switching.
Flexible and interoperable
The TB9100 offers operation in VHF, UHF and 700/800MHz bands, and it is tested for interoperability and performance in a P25 Compliance Assessment Program (P25 CAP) recognized laboratory.
Cost-saving efficiency
With remote programming and software licenses, the TB9100 reduces the need for site visits and hardware upgrades. IP connection provides ease of diagnostics – connect and configure alerts and alarms, monitor performance and administer the site remotely.
Security focused
The TB9100 offers secure communications with support for P25 standard DES and AES encryption.
Technical specifications
Frequency Bands
VHF: 136-174MHz, UHF: 380-520MHz, 700/800MHz: 762-870MHz
Tait Tough
Operating temperature of -22°F to 140°F (-30°C to 60°C).
Transmit power rating
Single 1/5W Base Station System
Single 5/50W Base Station System
Single 10/100W Base Station System
Receiver Sensitivity
Analog sensitivity (12dB SINAD) <0.25μV (-119.0dBm)
Digital sensitivity (TIA/EIA-102) 0.21μV (-120.5dBm) @ 5% BERR
Channels/Zones
255
Dimensions
HxWxD (subrack only) 7in (177.8mm) x 19in (482.6mm) x 15.2in (386mm)
HxWxD (including front panel) 7in (177.8mm) x 19in (482.6mm) x 16.1in (409mm)
